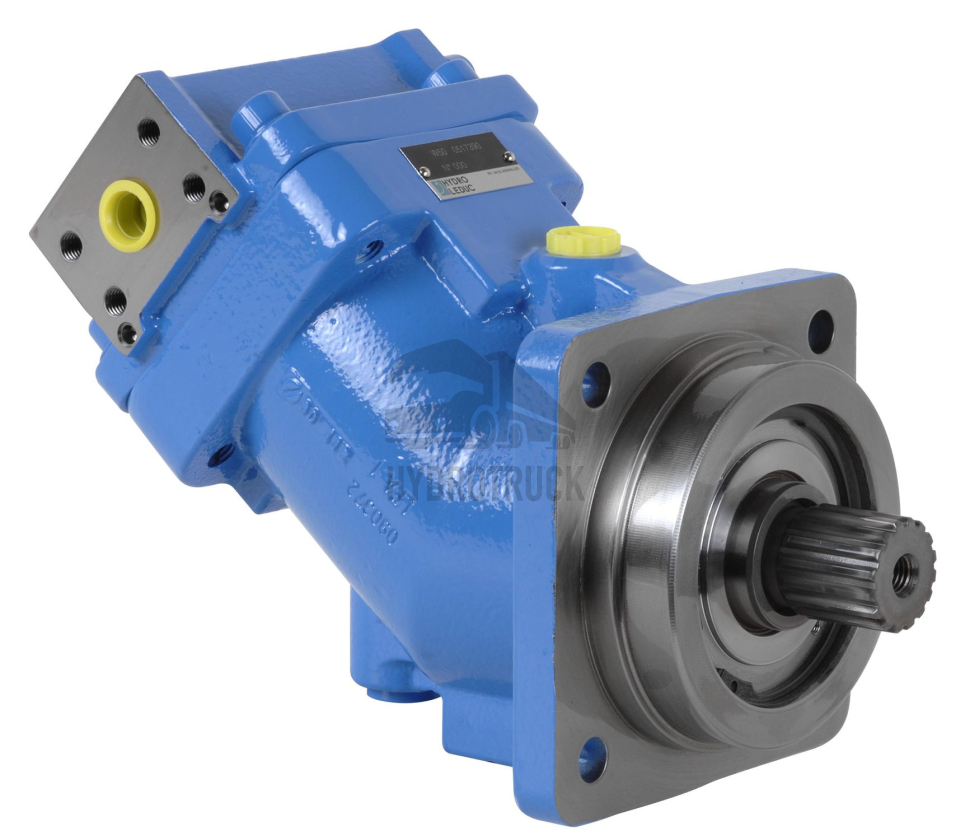

Pístový hydromotor Hydro Leduc M108R-A-W2-N1-M2-1-1P-VB14-F

Descrip M 108R A W2 N1 M2 1 1P VB14 F SP

Motor type :                                                      M motor

Motor displacement :                                  108,3 cm³/tr (6,615 cu.in/rev)

Moun_ng flange :                                           M motor flange

Motor shaft :                                                     Splined shaft W2 (DIN)

Inlet / outlet ports : Lateral flanges      N1 (Prepared for flushing valve)

Drain :                                                                  2 drain M thread

Speed sensor predisposi_on :                 With speed sensor predisposi_on

Speed sensor :                                                With speed sensor and its plug

Flushing valve :                                               With flushing valve 14 l/min

Low temperture op_on :                             No (FKM)

Shaft seal pressure type :                          Standard pressure

Painting :                                                            RAL 9005 BS 500H
